artis 5000U A2 LED UV Printer

PRINT BIGGER AND 2X FASTER

Textured and embossed large format photo realistic printing
Direct printing on dark and transparent materials
Optimal for printing on both rigid and flexible substrates
Ideal for printing signage, packaging, decoration (wood printing, ceramics, glass, plastics, aluminum...etc...), posters, promotional items.

UPSCALED FEATURES

Unique lateral loading architecture
Optimal cost saving with the continuous ink supply system
Feathered printing rendering mode
Automatic error checking on boot with error reporting
Printhead height self adjustment
Extended printhead life time with the flash on ink firing technology
Simplified operation and maintenance
Interlaced curing sytem
Built in liquid cooling control system
Versatile printing with the LED UV power level adjustment
Y axis servo motor for increased printing quality

Print speed		5 minutes for Full 51 * 70CM @ 1440 * 1440 dpi
Printing technology		UV LED (Built in water cooling)
Ink		artisink DTS3 (C,M,Y,K,W), LC, LM, V available
Media	Application	Signage, packaging, decoration (wood printing, ceramics, glass, plastics, aluminum...etc...), posters, promotional items
	Media Size	510 x 710 mm (20.07 x 27.95 in)
	Thickness	100 mm
	Rotary Print	Optional
Printing	Printing modes	4 pass 6 pass 8 pass
	Print Size	510 * 710 mm
	Print Head	Epson DX7 Industrial

Connectivity	Nozzles	Variable dot size printing technology, starting from 1.5 pl and up to 21 pl
	Ports	USB 2.0
	Operating systems	Windows
Dimensions	Depth x Width x Height	Printer 790 x 970 x 540 mm (31.10 x 38.18 x 21.25 in)
		Shipping 1100 x 1230 x 760 mm (43.30 x 48.42 x 29.92 in)
Weight		Printer 180 Kg, Shipping 210 Kg
Content of the box		artis 5000U U, USB cable, Power cable, User manual book, washing and ink - joiner tools, spare parts package
Environmental ranges		10 - 35 °C
Power consumption and requirements		AC 100V ~ 240V ± 10%, 0.5kVA
Certification		CE certified
Warranty		One year limited warranty

Flash On Ink Firing System

Intelligently powered by ArtisPrinters FOIF system, the artis 5000U printer electronically activates the UV LEDs when firing ink only. As a result, the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.

Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.

Unique lateral loading platform design

Unique design ensuring a better visibility of the output. Ideal for space constraints workplaces.

Control On Demand System

Designed for an enhanced flexibility and simplicity, brotherJet COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing mode( Bi-directional, Uni-directional). This will result in delivering an optimal printing quality and drying time.

Safe Water Cooling Control System

Designed for operational extra safety and simplicity, brotherJet’s SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.

Self-automated printing height adjustment

Equiped with sensors to automatically adjust head height and reduce the print head strikes.

Gradient ECO UV LED Technology

Equipped with artisJet new UVGC2 UV LED clutter suppression Processor technology. The UV LED light wave varies from 365-395 and deliver the best print color durability by drying the prints in different layers.

Auto Cleaning Module

Extends the printer head life by running scheduled ink system cleaning and maintenance when the printer is idle for a period of time.

New Wave Pass Control Technology

Empowered by the wave print technology, the gradient feathering print functionality of artis 5000 U ensures the sharpness of the print output.

Custom PVC Cards Printing	Max printable card size: 5070 cm 50 cards (5.48.6 cm) / 10 minutes / pass Friendly cost: 0.008 $ / 5.4*8.6 cm card Quantity print, no limit production Supporting VDP direct print On demand printing jigs
Phone Cover Printing	Print on any model and brand 20 pcs / IPhone 6+ cover / pass Cost effective: 0.016 $ / phone case Supporting any type of files Multiple substrates type printing Photo quality and glitter finishes
Large Packaging Printing	Direct printing on any material Low running cost as 0.032 $ / pc 6pcs / 7 minutes / pass Gradient vivid color printing Printing height up to 100 mm Direct to substrate color delivery
Leather Printing	Print on various leather media 45*45cm leather pillow / 6 minutes / pass 0.25 $ print cost for full printing Clean and sharp gradient output Edge to edge full image printing
Signage Printing	Aluminum, plastic and any material Up to 51 * 71 cm large boards Raised prints for maximum effect Specialized software templates High resolution printed graphics Both full and gradient color printing

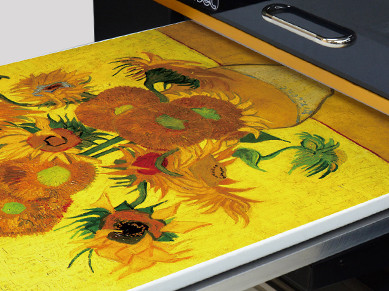

Interior Deco Printing	Print to canvas, wood, glass & more A2+ full color print in 10 minutes / pass Cost effective: 0.43 $ / A2+ size Create photo albums, frames etc. Shining and strong color delivery 3D textured print easily achieved
