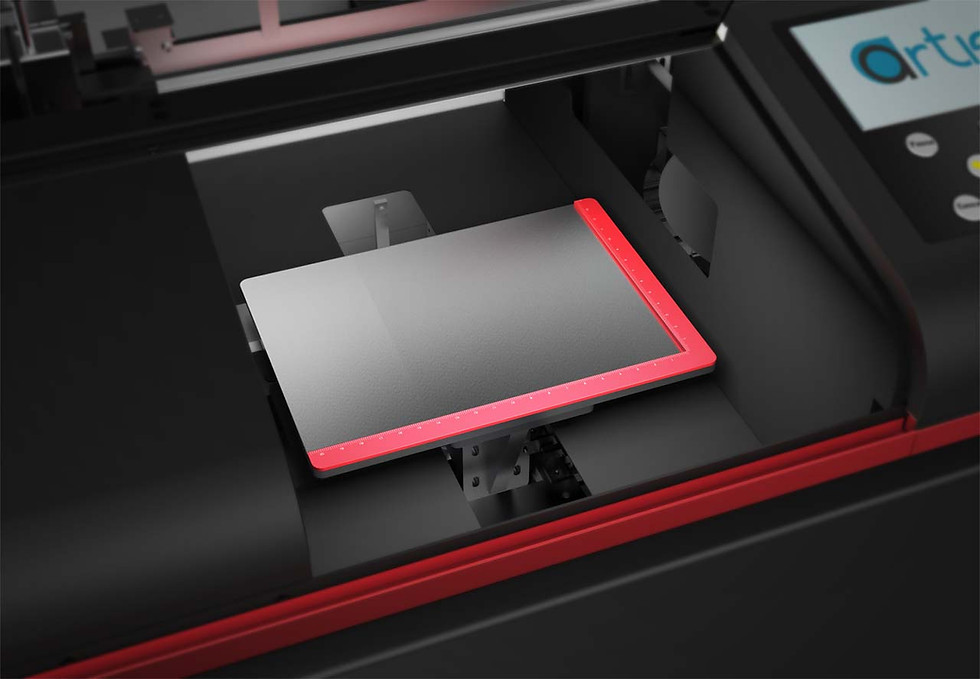

artisJet proV6 A5 Mini LED UV Printer

artisJet proV6 A5 Mini LED UV Printer

Designed for color value, developed to explore all possibilities



  • Comfort & functional design for workplace efficiency

  • Suitable for small batch printing customized items: cosmetics primary packaging, promotional products, RFID cards, smartphone creative accessories etc.

  • Full panoramic view of the print window for easy-to-follow printing process

  • Authentic color reproductions – direct digitally print both white & color graphics with vivid and true photo quality

  • Amazing color effects (embossed tactile photo realistic printing, eye-catching clear shining) covering most materials, with multiple tasks on queue for quantity prints





Core technology hightlight​​​​​​​



  • Flash On Ink Firing System Intelligently powered by artisJet's FOIF system, the artis 5000U uv printer electronically activates the UV LEDs when firing ink only. As a result the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.

  • Cartridges Continuous Ink Supply System This system allows for 100% utilization of available ink. Refillable ink systems for economical printing.

  • Full Panoramic view of the print window Unique design ensuring a better visibility of the output. Ideal for space constraints workplaces.

  • Green air purification system Reduces the smell and boasting with the air purification and the particle collection system.

  • Control On Demand System Designed for an enhanced flexibility and simplicity, artisJet COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing model(Bi-directional, Uni-directional). This will result in delivering and optimal printing quality and drying time.

  • Built-in Liquid UV Cooling System Designed for operational extra safety and simplicity, this system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.

  • Automatic Printhead Height Adjustment Equiped with sensors to automatically adjust head height and reduce print head strikes.

  • Easy Maintenance Kit in one drawer accessibility





  • Print speed

    Unidirection

    20*15 cm full size at 2880*1440 photo quality print:

    Color+White = 400 seconds

    Color = 260 seconds

    White = 260 seconds



    Direction speed

    60% of the timing needed for the above

    Printing technology



    UV LED

    Ink



    artisink DTSAT3 (CMYK+WWWW / CMYK+WW+V V)

    Media

    Applications

    All materials available; made on demand



    Media Size

    A5, 210 x 150 mm (8.27 x 5.91 in)



    Thickness

    Up to 50 mm (1.96 in); customization available

    Printing

    Printing modes

    Color + White

    Full Color

    Pure White only



    Print Resolution

    Up to 720 x 2880 dpi



    Print Head

    Epson DX7 on demand micro-Piezo



  • Connectivity

    Nozzles

    8 Chambers

    180*8 nozzles



    Ports

    USB



    Operating systems

    Windows 7. Windows 8, Windows 10

    Dimensions

    Depth x Width x Height

    Printer 770 x 505 x 470 mm (30.31 x 19.88 x 17.91 in),

    Shipping 540 x 850 x 500 mm (21.25 x 33.46 x 18.50 in)

    Weight



    Printer 60 Kg, Shipping 80 Kg

    Flatbed transmission



    Servodriven with magnetic strip and square orbit

    Content of the box



    proV6 A5 LED UV printer, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Damper

    Environmental ranges



    10 - 35 °

    Power consumption and requirements



    AC100V~240V±10%, 0.5kVA

    Certification



    CE / FCC / RoHS / REACH certified

    Warranty



    2 years warranty
