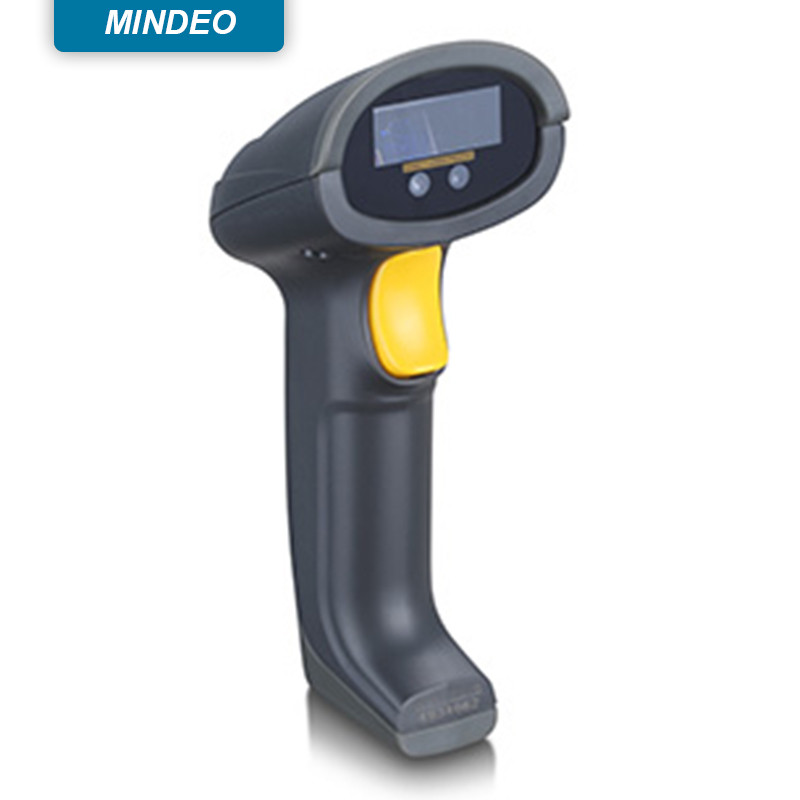

Mindeo MD2000 1D Barcode Scanner

Type : Handheld Scanner
Symbologies : 1D
Laser : Laser Diode (630nm~650nm)

Scan Rate : 200 scans per second
Interface : USB,RS232
Wireless : No

- Ergonomic, snappy and stylish design.
- Suitable to operate in diverse working environment.
- Read all major 1D symbols.
- Maximal decode rosulution at 3mil or 5mil.
- Infra-red auto-induction.
- Mirror surface reflection cancellation.
- Ready for all POS systems.
- Easy firmware upgrade.

Mechanical

Dimensions	Height × Width × Depthġ 76 mm × 66.5 mm × 168 mm
Weight	121g, without cable
Cable	Straight 2.0m
Connector type	RJ-45 phone jack connector
Case material	ABS
Exit window material	PC
Indicator	Beeper, LED
Interface supported	RS-232, USB Keyboard, USB virtual COM

Electrical

Input voltage	5 VDC ± 0.25 V
Power	525 mW (Operating); 850 mW (Max.)
Current	30 mA (Standby); 105 mA (Operating); 170 mA (Max.)

Scan Performance

Laser	630-650 nm laser diode
Decoding rate	200 times/sec
Scanning angle	±65°, ±70°, ±42° (Skew, Pitch, Roll)
Print contrast	25% minimum reflection difference
Decode capability	UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 , Matrix 2 of 5, Codabar (NW7), Code128,UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, GS1 DataBar (formerly RSS) variants, Telepen

Environmental

Temperature

0° to 50°C (32° to 122°F), Operating; -40° to 60°C (-40° to 140°F), Storage

Humidity

5% to 95% (non-condensing)

Safety

Laser safety: EN60825-1, Class 1 EMC: EN55022, EN55024 Electrical safety: EN60950-1

Drop resistance: 30 times 2.0 m (6.5 ft) drops to concrete Sealing: IP50

$70.00

Mindeo MD2000 1D Barcode Scanner

Technical Specifications
